Electromagnetic locks are widely used in important buildings, become vital parts in the high technology access control system.
Compared with traditional locks, this series locks have high holding force, low power consumption,stable quality,monitor signal feedback,noiseless,anti-theft and meet the fire safety requirement Copper material is used in order to keep the steady of working,adopt low power and surge protection.
Four mounting holes design increase the fixing force.The export-oriented electromagnetic locks have convenient wire hole and terminal.

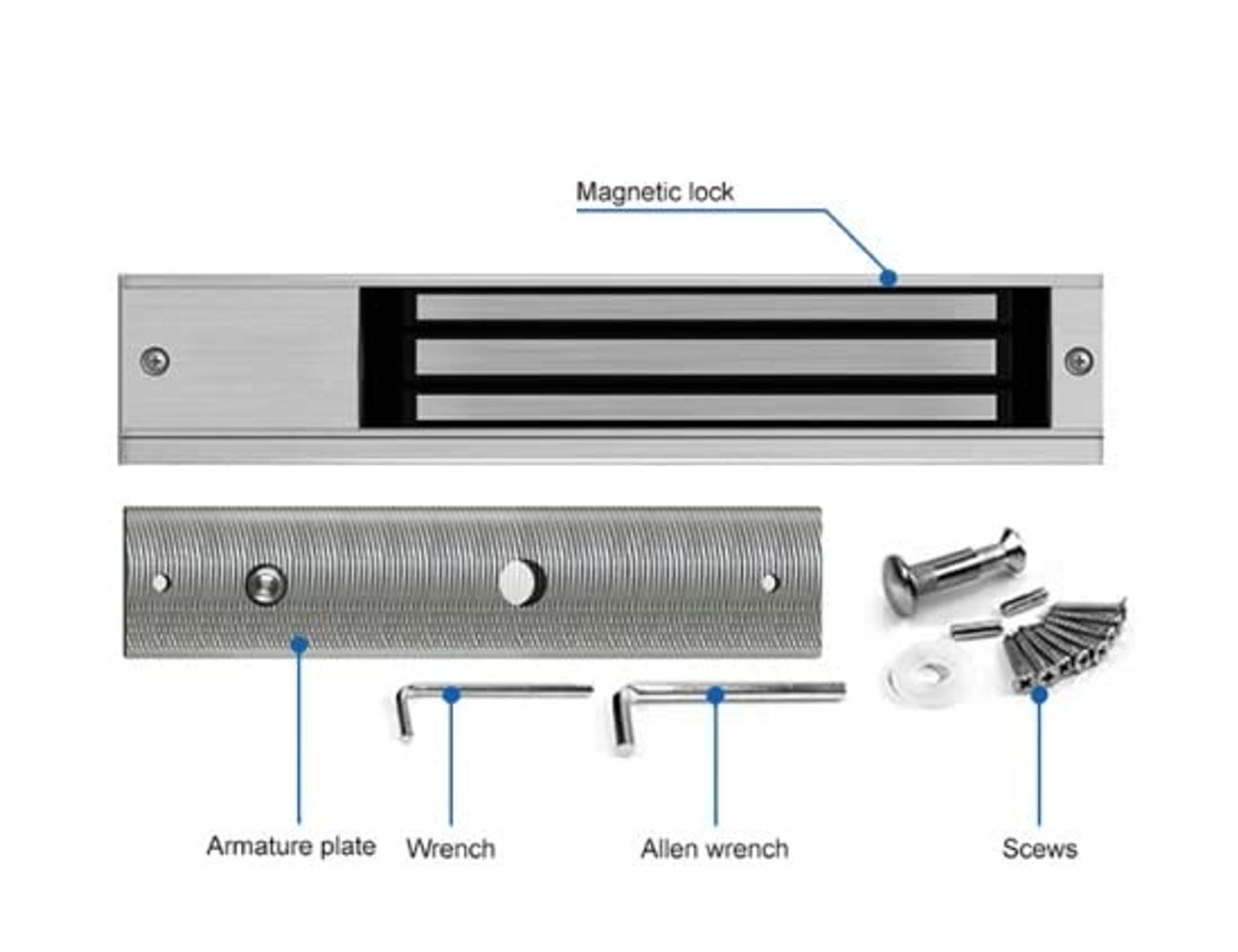

Lock Size :250Lx53Wx27H(mm) Armature plate:190Lx190Lx45Wx11H(mm)
Holding Force :250kg (600Lbs) Input Voltage :12V DC Voltage
Suitable for door: Wooden door , Glass door ,Metal door , Fireproof door Signal
 Feature:Fail Safe,
12VDC oltage
LED light signal
 Weight:2.6kgs.
Features:
Holding Capacity 250KG 600 pounds tested
12V DC
The Standard Voltage is 12VDC when Finished.
Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.
High Strenght Material, Copper is used
LED Indicates the Door Status.
Increase the holding Force,
Dual Insulative Housing.
